Machine Description

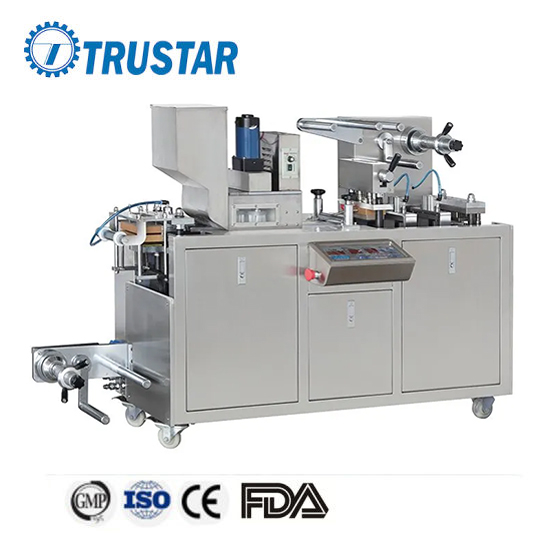

This blister packing machine is special designed for dosage room of hospital, middle or small pharmaceutical and nutrition products factory. It has following features: small machine-body, flat structure mould, easy to operate and change the mould, multifunction, travel can be adjustable, durable in use. It's widely used in pharmaceutical, foodstuff, hardware industry with alu-plastic packing. It's the ideal packing equipment for variety and small batch products packing.
Machine Description
This blister packing machine is special designed for dosage room of hospital, middle or small pharmaceutical and nutrition products factory. It has following features: small machine-body, flat structure mould, easy to operate and change the mould, multifunction, travel can be adjustable, durable in use. It's widely used in pharmaceutical, foodstuff, hardware industry with alu-plastic packing. It's the ideal packing equipment for variety and small batch products packing.
Punch Frequency | 10-40 times/min |
Capacity (80mm*57mm sheet) | 100-400 capsules/tablets per min |
Max. Forming Area and Depth | 70mm*100mm*26mm |
Travel Range | 20-70mm (optional) |
Air Pressure | 0.6-0.8 Mpa |
Main Motor Power | 0.75kw |
Total Power | 380V/220V 50Hz 1.8 kw (optional) |
PVC Material | 0.15-0.50*80mm |
PTP Alu Foil | 0.02-0.035*80mm |
Dialysis Paper | 50-100g*80mm |
Mould Cooling | Running Water or Recycle Water |
Noise Index. | Less than 75dBA |
Machine Dimension | 1400mm*460mm*950mm |
Machine Weight | 450Kg |
Punch Frequency | 10-40 times/min |
Capacity (80mm*57mm sheet) | 100-400 capsules/tablets per min |
Max. Forming Area and Depth | 70mm*100mm*26mm |
Travel Range | 20-70mm (optional) |
Air Pressure | 0.6-0.8 Mpa |
Main Motor Power | 0.75kw |
Total Power | 380V/220V 50Hz 1.8 kw (optional) |
PVC Material | 0.15-0.50*80mm |
PTP Alu Foil | 0.02-0.035*80mm |
Dialysis Paper | 50-100g*80mm |
Mould Cooling | Running Water or Recycle Water |
Noise Index. | Less than 75dBA |
Machine Dimension | 1400mm*460mm*950mm |
Machine Weight | 450Kg |
